Integrated Cervical Interbody with proprietary osteoconductive microtexture and arched anatomic structure engineered to promote faster fusion.
Product Features
3D Printed Titanium with SPIRA® Technology
Open architecture provides large graft volume while maintaining endplate surface contact
Internal fixation with screws

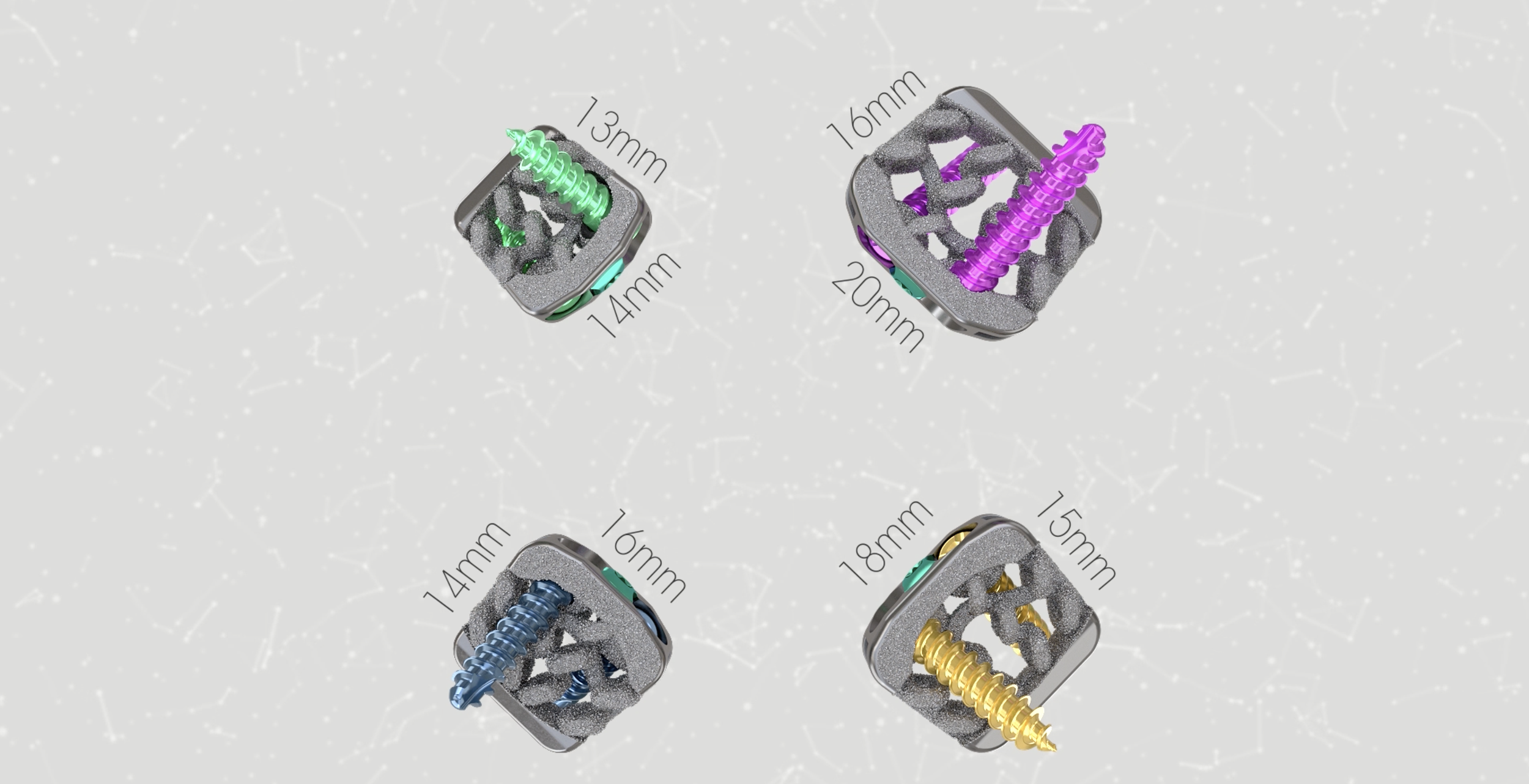

Available in 3 footprints to accommodate patient anatomy
-
Footprints(mm): 13x14, 14x16, 15x18
Heights: 6 to 12mm in 1mm increments
Lordosis: 7°
Graft Volume up to 1.8cc
⌀3.5mm integrated bone screws in 12 to 18mm lengths with ⌀4.0mm rescue screws available
Self-Drilling And Self Tapping Options
Variable or Fixed Angle Trajectories
SPIRA®’s proprietary 3D Hierarchal Design, is designed for Stability, Synergy, and Simplicity to drive a fast and reliable interbody fusion*.
Open architecture arch design provides immediate and directional fixation with substantial bone contact.
Optimized load distribution through each arch at the vertebral endplate interface allows for physiologic distribution of the flexural stiffness and can reduce the potential for subsidence.
3D printed titanium with Surface By Design® Technology*.
Osteoconductive microtexture allows for early bone apposition to promote a faster fusion.
