SPIRA® ANCHOR SOLUTIONS
Integrated Cervical and Lumbar interbody devices with 3D-printed bone anchor fixation.

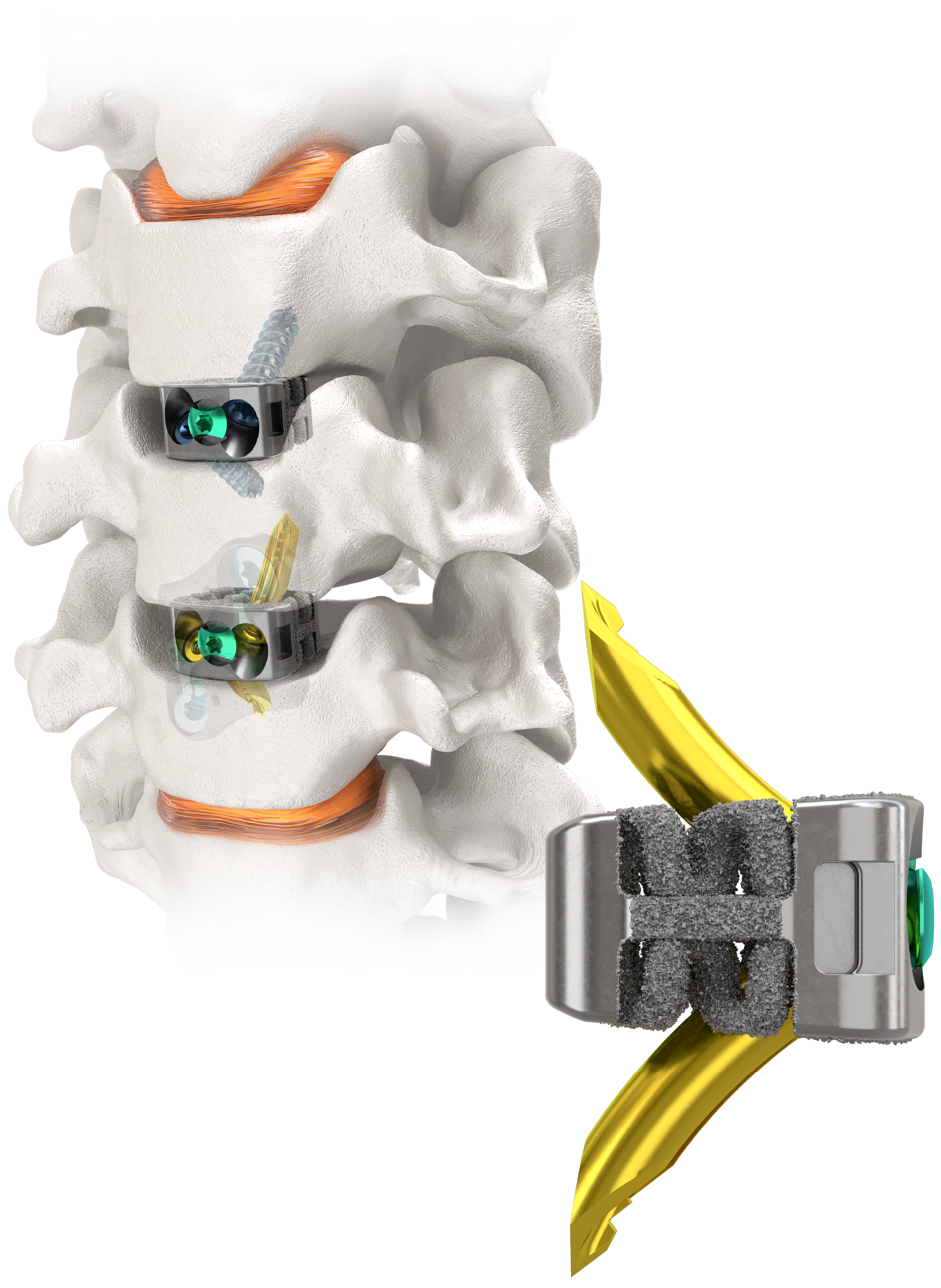

SPIRA®-C Integrated System Features
3D Printed Titanium with SPIRA® Technology
Open architecture provides large graft volume while maintaining endplate surface contact
Screw and Anchor Fixation options
Anti-Backout Teeth
Cervical Anchor Features
Anchor geometry designed for construct stability
Arcuate Profile For Inline Insertion
Self-aligning insertion feature
-
Footprints(mm): 13x14, 14x16, 15x18
Lordosis: 7°
Heights: 6 to 12mm in 1mm increments
-
Variable and Fixed Angle Trajectories, Self-Drilling and Self-Tapping Screws
Fixation Lengths: 12, 14, 16 and 18mm
Ø4.0mm Anchor

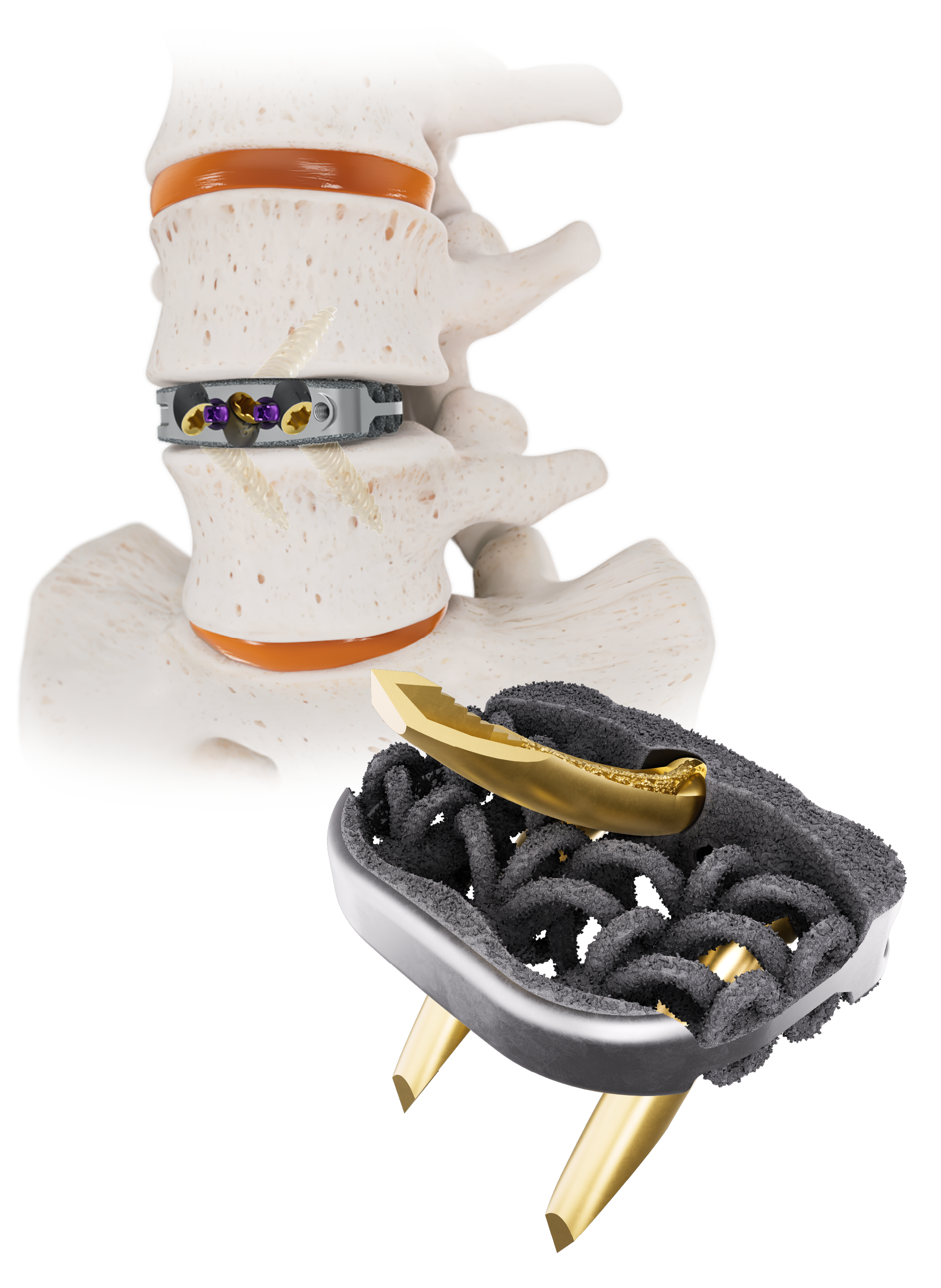

SPIRA®-A Integrated System Features
3D Printed Titanium with SPIRA® Technology
Open architecture provides large graft volume while maintaining endplate surface contact
Screw and Anchor Fixation options
Ergonomic instrumentation

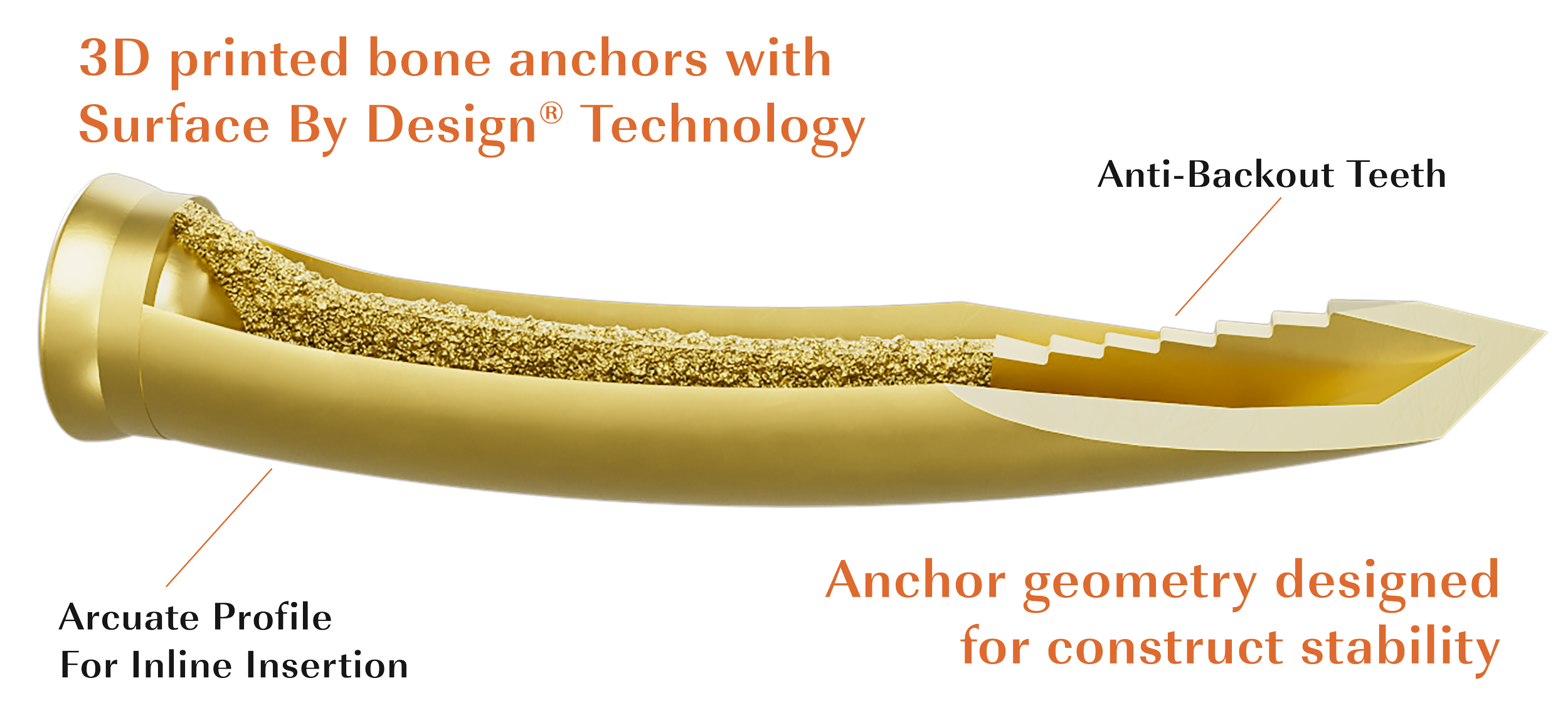

Lumbar Anchor Features
3D printed bone anchors with Surface By Design® Technology
Anchor geometry designed for construct stability
Arcuate Profile For Inline Insertion
Anti-Backout Teeth
-
Footprints (mm): 26x34, 28x38, 30x42
Lordoses: 8°, 15° and 20°
Heights: 9-21 in 2mm Increments
-
Variable and Fixed Angle Trajectories, Self-Drilling and Self-Tapping Screws
Fixation Lengths: 20-40mm in 5mm increments
Ø5.5 and Ø6.0 Screws, Ø6.0 Anchors
